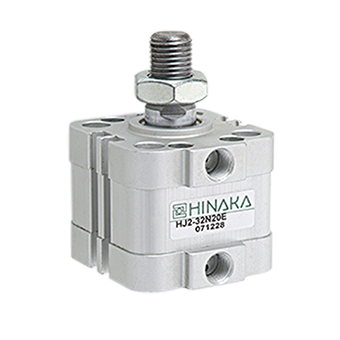

Compact Hydraulic Cylinder 3.5MPa - HJ2 Series
14Mpa Hydraulic Cylinders (JIS B8354)/5Mpa Hydraulic Cylinders/3.5Mpa Compact Hydraulic Cylinders
- Use carbon steel for both front/rear covers
- For sensing type, the cylinder is made by honed stainless steel (SUS304) seamless tube. Without sensor, made by honed carbon steel tube
- Medium carbon steel S45C is used for the piston rod, with hard chromate plated then polished to mirror class. It has very high rigidity and resistance to erosion and corrosion.
- Adjustable cushions and bleeding holes at both ends. ( Both with / without cushion types are available.)
- HJ2 Series the magnetic sensor is embedded in the cylinder body, adjustment can be done in slot.
DOWNLOAD
Compact Hydraulic Cylinder 3.5MPa - HJ2 Series Catalog
Selection Guide for Hydraulic Cylinder Technology
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-32N000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 28+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-32M000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 35+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-32N000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 35.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-32M000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 42.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-32N000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 28+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-32M000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 35+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-32N000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 35.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-32M000F | Standard | □ 51 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x12 | 7.0Mpa (71.4kgf/cm2) | 42.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-40N000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 39.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-40M000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 39.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-40N000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 44+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-40M000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 44+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-40N000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 39.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-40M000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 39.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-40N000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 44+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-40M000F | Standard | □ 59 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ16 mm | M8x1.25x13 | 7.0Mpa (71.4kgf/cm2) | 44+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-50N000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 40.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-50M000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 40.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-50N000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 51.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-50M000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 51.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-50N000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 45.75+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-50M000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 45.75+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-50N000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 51.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-50M000F | Standard | □ 70 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x15 | 7.0Mpa (71.4kgf/cm2) | 51.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-63N000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 46+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-63M000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 46+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-63N000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 58+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-63M000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 58+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-63N000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 46+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-63M000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 46+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-63N000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 58+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-63M000F | Standard | □ 83 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ20 mm | M10x1.5x18 | 7.0Mpa (71.4kgf/cm2) | 58+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-80N000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 53.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-80M000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 53.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-80N000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 66+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-80M000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 66+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-80N000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 53.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-80M000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 53.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-80N000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 66+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-80M000F | Standard | □ 102 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 66+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-100N000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 63+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2-100M000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 63+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-100N000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 76.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2D-100M000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 76.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-100N000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 63+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2Y-100M000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 63+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-100N000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 76.5+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| HJ2DY-100M000F | Standard | □ 122 mm | 0.3 - 5Mpa (3.06 -51kgf/cm2) | Φ25 mm | M16x2.0x21 | 7.0Mpa (71.4kgf/cm2) | 76.5+ST mm | ISO Vg32 |
