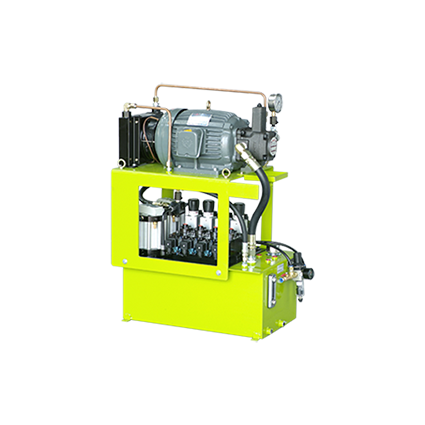

Air Driven Hydraulic Power Pack Unit with both high and low pressure - AHPT Series

Hydraulic Pump component

  • Driven by air pressure, the hydraulic pump will automatic stop when the hydraulic pressure reaches the setting value and automatic recharge the system for any pressure drop . It is the best choice to safety and steadily hold workpiece for cutting
  • It is most suitable for applications, which demand for high pressure and sustaining holding of workpiece.
  • Even continuous running for months, the oil temperature will not rise. This feature effectively remedies the high temperature problem of the motor hydraulic pump. In addition, it is different from other booster, this pneumatic driven pump can pump oil continuously.
  • As a pneumatic driven device, the cylinder can be instantly started or stopped, it has the merits of explosion-proof, energy-efficient and small size
  • Number of control valves can be selected as demand. Users may select double pumps model with high/low pressure pumps, large amount of oil output can degrease the action time for holding.
DOWNLOAD

Pneumatic Driven Hydraulic Booster Pump Catalog

AHPT-04-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-04-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air5.0:1.0Standard Type25 kgf12 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
AHPT-10-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-10-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air10.0:1.0Standard Type50 kgf5 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
AHPT-25-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-25-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air25.0:1.0Standard Type125 kgf2.5 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
AHPT-44-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-44-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air44.0:1.0Standard Type220 kgf1.4 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
AHPT-64-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-64-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air64.0:1.0Standard Type320 kgf0.9 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
AHPT-100-D10-V4D Product Name3/2 Valve Zero-leakage CircuitActuation PressureBoosting RatioMounting TypeOil PressureOutput CapacitySensorTemperature RangeValve VoltageWorking Fluid Compare
AHPT-100-D10-V4DFour group of 3/2 Valve Zero-leakage Circuits0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air100.0:1.0Standard Type500 kgf0.6 c.c.with sensor(-10) ~ (+60)℃D : DC24V 01 : AC110V 02 : AC220V 03 : AC380VCPC-R32 / ISO VG32
