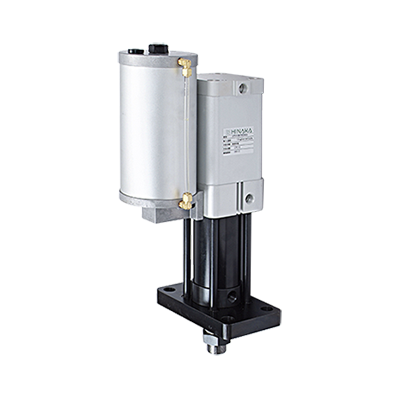

Pneumatic-hydraulic Boosting Cylinder - APT2 Series
Air-Oil Boosting Cylinder
- The booster is an efficient way of generating high pressure hydraulic fluid. Designed to save energy, time, space and money in a wide variety of applications.
- Diversified forms, Can meet various conditions of use . Pre-compression typed / direct boosting type ; oil-air contact type/ separated type / oil can separated type.
- Patented oil and gas isolation bag design, the air will never be mixed into the oil, and no oil mist will be generated high frequency operation.
- There is not need hydraulic stations and complicated control loops, saving maintenance time and space.
DOWNLOAD
Pneumatic-hydraulic Boosting Cylinder - APT & APT2 Series Catalog
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10018M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10025M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10035M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1005M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1008M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1013M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1015M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 100mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10018M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10025M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-10035M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1005M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1008M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1013M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-P-1015M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 200mm | Pre-compression oil/air contact type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10018M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10025M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10035M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1005M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1008M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1013M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1015M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 100mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10018M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10025M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-10035M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1005M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1008M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1013M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-PC-1015M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 200mm | Pre-compression oil/air seperated type | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10018M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10025M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10035M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1005M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1008M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1013M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1015M100N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 100mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10018M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1256 | 1570 | 1884 | Φ100 mm | 1.8 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10025M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 1640 | 2051 | 2461 | Φ100 mm | 2.5 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-10035M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 2233 | 2791 | 3349 | Φ100 mm | 3.5 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1005M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 4005 | 5006 | 6,,008 | Φ100 mm | 5 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1008M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 5024 | 6280 | 7536 | Φ100 mm | 8 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1013M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 7850 | 9812 | 11775 | Φ100 mm | 13 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
 | Product Name | Actuation Pressure | Boosting Force-4 kgf/cm2 compressed air (kgf) | Boosting Force-5 kgf/cm2 compressed air (kgf) | Boosting Force-6 kgf/cm2 compressed air (kgf) | Cylinder | Output Force | Stroke Boosting | Stroke Entire | Type | Working Fluid | Compare |
| APT2-C-1015M200N10 | 0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air | 10253 | 12816 | 15379 | Φ100 mm | 15 tons | 10mm | 200mm | Direct Pressure Boosting Cylinder | CPC-R32 / ISO VG32 |
