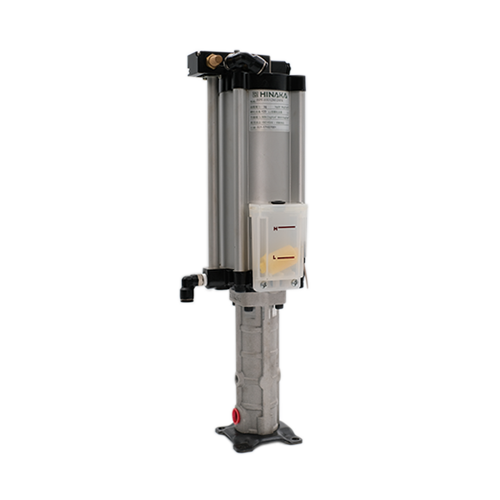

Tool Change Unclamping Booster- BPF Series
HINAKA proudly presents the Tool Change Unclamping Booster - BPF Series, engineered for precision, reliability, and enhanced performance in automated tool change systems. This state-of-the-art booster is designed to meet the demanding requirements of modern manufacturing environments, ensuring seamless and efficient tool unclamping processes. The BPF Series offers superior energy efficiency, reducing operational costs and minimizing downtime. Constructed with high-quality materials, it is built to withstand rigorous industrial use, ensuring long-term durability and reliability. Equipped with advanced control mechanisms, this booster provides precise and consistent unclamping pressure, enhancing the accuracy and repeatability of tool changes. Its compact and lightweight design allows for easy integration into existing systems, saving valuable space on the factory floor. Designed for ease of maintenance, the BPF Series features accessible components and a user-friendly interface, reducing downtime and maintenance costs. Compatible with a wide range of tool change systems, it is suitable for various industrial applications, including CNC machining, robotics, and automated assembly lines. The Tool Change Unclamping Booster - BPF Series by HINAKA is your ultimate solution for optimizing tool change efficiency and ensuring the smooth operation of your automated systems. Trust in our expertise and commitment to quality to elevate your manufacturing capabilities.
Unclamping Booster (Booster for 4th & 5th axis rotary table)
- Used with hydraulic cylinder. Provide hydraulic power for motor direct-drive and built-in spindle
- Patented new air-oil isolation booster. Double oil, no rust trouble. The Circuit is simple, the installation and maintenance are easy
- 4th & 5th axis rotary table clamping
- ZERO POINT clamping and unclamping
- Manual Tailstock
- Rotary pneumatic/hydraulic collet chuck
- Any need clamping
DOWNLOAD
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M50FA | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 321 mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M70FA | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 377 mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M110FA | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 491 mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M50FA | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 341mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M70FA | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 407mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M110FA | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 537mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M50FA | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 383mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M70FA | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 465mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M110FA | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 615mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M50FA | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 500mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M70FA | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 627mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M110FA | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 882mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M50FA | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 575mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M70FA | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 732mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M110FA | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 1046mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M50FA | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 679mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M70FA | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 878mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M110FA | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 1276mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M50FA | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 831mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M70FA | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 1091mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M110FA | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 1611mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M50LB | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 308 mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M70LB | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 365 mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U11M110LB | 44 kgf | 55 kgf | 66 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 11.0：1.0 | 478 mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M50LB | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 329mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M70LB | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 394mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U12M110LB | 51 kgf | 63 kgf | 76 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 12.7：1.0 | 524mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M50LB | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 370mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M70LB | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 452mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U16M110LB | 64 kgf | 80 kgf | 96 kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 16.0：1.0 | 615mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M50LB | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 487mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M70LB | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 615mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U25M110LB | 100kgf | 125kgf | 150kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 25.0：1.0 | 870mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M50LB | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 562mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M70LB | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 719mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U30M110LB | 123kgf | 154kgf | 185kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 30.0：1.0 | 1034mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M50LB | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 667mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M70LB | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 866mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U39M110LB | 156kgf | 195kgf | 234kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 39.0：1.0 | 1264mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M50LB | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 819mm | 50c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M70LB | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 1079mm | 70c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
 | Product Name | 4 kgf Compressed Air | 5 kgf Compressed Air | 6 kgf Compressed Air | Actuation Pressure | Boosting Ratio | Length | Output Capacity | Pneumatic Cylinder | Sensor | Voltage | Working Fluid | Compare |
| BPF-10U51M110LB | 204kgf | 255kgf | 306kgf | 0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air | 51.0：1.0 | 1599mm | 110c.c | Φ100 mm | with sensor | DC24, AC110, AC220 | CPC-R32 / ISO VG32 |
