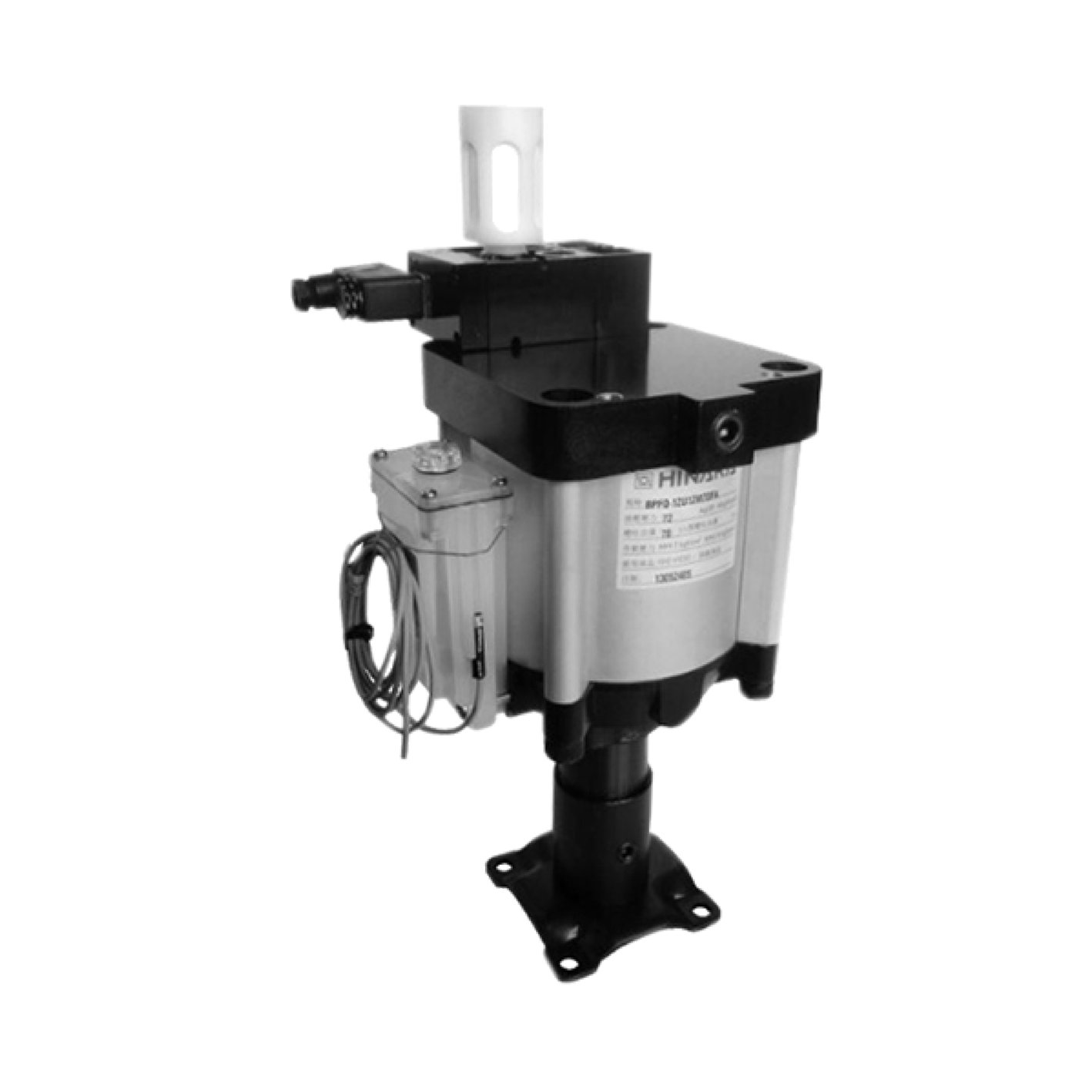

High Speed Tool Change Unclamping Booster - BPFQ Series

Unclamping Booster (Booster for 4th & 5th axis rotary table)

  • Used with hydraulic cylinder. Provide hydraulic power for motor direct-drive and built-in spindle
  • Patented new air-oil isolation booster. Double oil, no rust trouble. The Circuit is simple, the installation and maintenance are easy
  • 4th & 5th axis rotary table clamping
  • ZERO POINT clamping and unclamping
  • Manual Tailstock
  • Rotary pneumatic/hydraulic collet chuck
  • Any need clamping
DOWNLOAD

Tool Change Unclamping Booster- BPF Series Catalog

BPFQ-10U11M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U11M50FA44 kgf55 kgf66 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air11.0：1.0321 mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U11M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U11M70FA44 kgf55 kgf66 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air11.0：1.0377 mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U11M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U11M110FA44 kgf55 kgf66 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air11.0：1.0491 mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U12M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U12M50FA51 kgf63 kgf76 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air12.7：1.0341mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U12M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U12M70FA51 kgf63 kgf76 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air12.7：1.0407mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U12M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U12M110FA51 kgf63 kgf76 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air12.7：1.0537mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U16M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U16M50FA64 kgf80 kgf96 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air16.0：1.0383mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U16M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U16M70FA64 kgf80 kgf96 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air16.0：1.0465mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U16M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U16M110FA64 kgf80 kgf96 kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air16.0：1.0615mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U25M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U25M50FA100kgf125kgf150kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air25.0：1.0500mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U25M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U25M70FA100kgf125kgf150kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air25.0：1.0627mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U25M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U25M110FA100kgf125kgf150kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air25.0：1.0882mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U30M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U30M50FA123kgf154kgf185kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air30.0：1.0575mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U30M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U30M70FA123kgf154kgf185kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air30.0：1.0732mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U30M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U30M110FA123kgf154kgf185kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air30.0：1.01046mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U39M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U39M50FA156kgf195kgf234kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air39.0：1.0679mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U39M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U39M70FA156kgf195kgf234kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air39.0：1.0878mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U39M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U39M110FA156kgf195kgf234kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air39.0：1.01276mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U51M50FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U51M50FA204kgf255kgf306kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air51.0：1.0831mm50c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U51M70FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U51M70FA204kgf255kgf306kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air51.0：1.01091mm70c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
BPFQ-10U51M110FA Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoosting RatioLengthOutput CapacityPneumatic CylinderSensorVoltageWorking Fluid Compare
BPFQ-10U51M110FA204kgf255kgf306kgf0.4Mpa - 0.6Mpa(4kgf/cm2 - 6kgf/cm2) compressed air51.0：1.01611mm110c.cΦ100 mmwith sensorDC24, AC110, AC220CPC-R32 / ISO VG32
