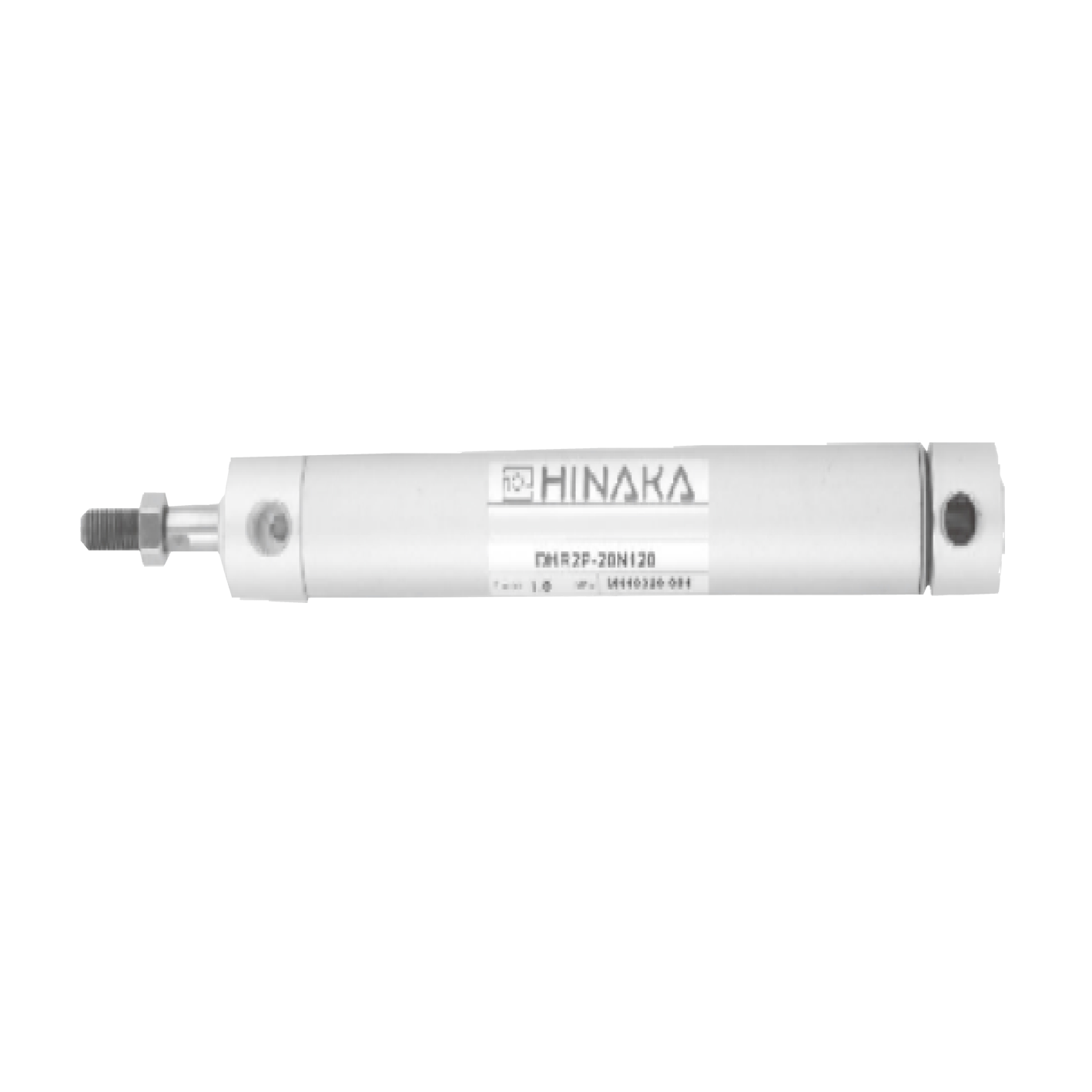

Robot pulling cylinder - DHR2-P

Bearing extension and dust-scraping design of seals can withstand harsh environmental conditions
With buffer and buffer extension options, can replace hydraulic buffer
Has a strong dust scraping effect
The front and rear ends are equipped with rubber buffer to avoid direct collision between the piston and the front and rear caps

DOWNLOAD

High Speed Pneumatic Cylinder for Swing Arm Robot Catalog

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P20M000PPV-2	DHR2 Robotic Arm	M20x1.5	Stroke,Sensor	35mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M8x1.25	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	35+97.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P20N000PPV-2	DHR2 Robotic Arm	M20x1.5	Stroke,Sensor	35mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M8x1.25	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	35+100.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P25M000PPV-2	DHR2 Robotic Arm	M25x2.0	Stroke,Sensor	40mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M10x1.25	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	40+101.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P25N000PPV-2	DHR2 Robotic Arm	M25x2.0	Stroke,Sensor	40mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M10x1.25	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	40+104.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P32M000PPV-2	DHR2 Robotic Arm	M30x2.0	Stroke,Sensor	40mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M10x1.25	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	40+113+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P32N000PPV-2	DHR2 Robotic Arm	M30x2.0	Stroke,Sensor	40mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M10x1.25	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	40+117+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P40M000PPV-2	DHR2 Robotic Arm	M35x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M12x1.25	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	50+119.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P40N000PPV-2	DHR2 Robotic Arm	M35x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M12x1.25	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	50+123.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P50M000PPV-2	DHR2 Robotic Arm	M36x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M18X1.5	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	50+143+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P50N000PPV-2	DHR2 Robotic Arm	M36x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M18X1.5	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	50+146.4+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P63M000PPV-2	DHR2 Robotic Arm	M36x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M18X1.5	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	50+145+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P63N000PPV-2	DHR2 Robotic Arm	M36x2.0	Stroke,Sensor	50mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M18X1.5	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	50+148.6+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P80M000PPV-2	DHR2 Robotic Arm	M60x2.0	Stroke,Sensor	80mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M22x1.5	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	80+165.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-1P80N000PPV-2	DHR2 Robotic Arm	M60x2.0	Stroke,Sensor	80mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	M22x1.5	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	80+169.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P20M000PPV-2	DHR2 Robotic Arm	Φ12mm	Stroke,Sensor	52mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ8mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	52+72.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P20N000PPV-2	DHR2 Robotic Arm	Φ12mm	Stroke,Sensor	52mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ8mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	52+75.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P25M000PPV-2	DHR2 Robotic Arm	Φ14mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ10mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	53+76.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P25N000PPV-2	DHR2 Robotic Arm	Φ14mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ10mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	53+79.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P32M000PPV-2	DHR2 Robotic Arm	Φ18mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ12mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	53+88+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P32N000PPV-2	DHR2 Robotic Arm	Φ18mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ12mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	53+92+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P40M000PPV-2	DHR2 Robotic Arm	Φ25mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ16mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	50+94.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P40N000PPV-2	DHR2 Robotic Arm	Φ25mm	Stroke,Sensor	53mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ16mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	50+98.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P50M000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ20mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	75+118+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P50N000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ20mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	75+118+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P63M000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ20mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	75+120+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P63N000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ20mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	75+120+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P80M000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ25mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	75+140.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P80N000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ25mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	75+144.5+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P100M000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ30mm	1Mpa (10.2kgf/cm2)	Magnetic	50-1000mm/s	75+146+STmm	Customization	(-10) ~ (+60)℃	compressed air

	Product Name	Application	Bore	Customization	Extension Length	Form	GMP Sensor	Operating Pressure	Piston Rod	Proof Pressure	Sensor	Speed Range	Standard Length	Stroke	Temperature Range	Working Fluid	Compare
	DHR2-2P100N000PPV-2	DHR2 Robotic Arm	Φ30mm	Stroke,Sensor	75mm	Double-acting	2	0.1Mpa-0.8Mpa(1kgf/cm2 - 8kgf/cm2)	Φ30mm	1Mpa (10.2kgf/cm2)	Without Magnetic	50-1000mm/s	75+153+STmm	Customization	(-10) ~ (+60)℃	compressed air
